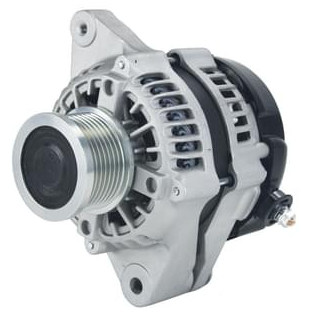

Alternator Denso Type 12V 85A Suits Hi-Lux D4D 1KD-FTV 3.0L Diesel

Alternator Denso Type 12V 85A Suits Hi-Lux D4D 1KD-FTV 3.0L Diesel

$450.00
$450.00
Sale Sold out
Tax included.

Specifications:

Solid Foot Length 58mm
Plug Type AP88
Pulley Grooves 7V
Adjuster to Pivot Hole Length 164mm
Pivot Hole Diameter 10mm
Pulley Diameter 63mm
Shaft Diameter 17mm
Linked Applications 3.0 D KDH223 KDH221, 3.0 D-4D KDJ120 KDJ125 KDJ121, 3.0 D-4D 4WD KUN26, 3.0 D-4D KDJ150 KDJ150 KDJ155, 3.0 D 4WD KUN26, 3.0 D KUN16, 3.0 D KUN16 KUN36 KUN16, 3.0 D KDH201 KDH221, 3.0 D KDH203 KDH221 KDH223, 3.0 D-4D, 3.0 D-4D 4WD, 3.0 D KDH200 KDH223, 3.0 D-4D 4WD KDH225, V138, 2.5 D-4D KDH20 KDH21 KDH22 KDH200, 2.5 D-4D KDH200 KDH220, 2.5 D-4D KDH222 KDH202 KDH212, 2.5 D-4D KDH200, 2.7 TRJ120, 2.7 TGN16, 2.7 TRH223, 2.7 VVTI TRH201 TRH221, 2.7 TRH211 TRH214 TRH221 TRH223, 2.7 TGN111 TGN121 TGN136, 2.7 TGN111 TGN121, 2.7 TRJ125 RZJ120, 2.7 TRH2 TRH223, TOYOTA, DAIHATSU, HIACE, LAND CRUISER PRADO, HILUX, HIACE COMMUTER, REGIUS ACE, DELTA
Common Application Hi-Lux 1KD-FTV 3.0L Diesel
Voltage 12V
Adjuster Hole Diameter M8 x 1.25mm
Brand BAXTERS
Amperage 85A
Mounting Type Solid
Regulator Style Internal
Specification1 L x W x H: 18x18x20cm
Weight 4.88kg





Applications:
MAKE MODEL SERIES ENGINE FUEL TYPE YEAR LITRES
TOYOTA REGIUS ACE 2.5 D-4D (KDH200) 2KD-FTV Diesel 08/2004 - 12/2018 2.5L
TOYOTA HIACE 2.5 D-4D (KDH200, KDH220) 2KD-FTV Diesel 09/2006 - 07/2010 2.5L
TOYOTA HIACE 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200) 2KD-FTV Diesel 01/2005 - 09/2006 2.5L
TOYOTA HIACE / COMMUTER 2.5 D-4D (KDH222, KDH202, KDH212) 2KD-FTV Diesel 09/2006 - 12/2006 2.5L
TOYOTA HILUX 2.7 (TGN111_, TGN121_) 2TR-FE Petrol 07/2015 2.7L
TOYOTA HILUX 2.7 (TGN111_, TGN121_, TGN136_) 2TR-FE Petrol 05/2015 2.7L
TOYOTA HILUX 2.7 (TGN16) 2TR-FE Petrol 08/2005 - 05/2015 2.7L
TOYOTA HILUX 2.7 (TGN16_) 2TR-FE Petrol 02/2005 - 06/2015 2.7L
TOYOTA REGIUS ACE 2.7 (TRH211, TRH214, TRH221, TRH223) 2TR-FE Petrol 08/2004 - 12/2018 2.7L
TOYOTA HIACE / COMMUTER 2.7 (TRH223) 2TR-FE Petrol 01/2005 - 12/2014 2.7L
TOYOTA HIACE / COMMUTER 2.7 (TRH223_) 2TR-FE Petrol 12/2013 - 01/2019 2.7L
TOYOTA HIACE 2.7 (TRH2__, TRH223) 2TR-FE Petrol 01/2015 - 01/2019 2.7L
TOYOTA LAND CRUISER PRADO 2.7 (TRJ120) 2TR-FE Petrol 03/2003 - 08/2004 2.7L
TOYOTA LAND CRUISER PRADO 2.7 (TRJ125, RZJ120) 2TR-FE,3RZ-FE Petrol 09/2002 - 08/2004 2.7L
TOYOTA HIACE 2.7 VVTi (TRH201, TRH221) 2TR-FE Petrol 01/2005 - 01/2019 2.7L
TOYOTA HIACE 3.0 D (KDH200, KDH223) 1KD-FTV Diesel 01/2005 - 01/2019 3.0L
TOYOTA HIACE 3.0 D (KDH201, KDH221) 1KD-FTV Diesel 11/2006 - 01/2019 3.0L
TOYOTA HIACE / COMMUTER 3.0 D (KDH203_, KDH221, KDH223) 1KD-FTV Diesel 08/2004 - 01/2019 3.0L
TOYOTA HIACE 3.0 D (KDH223, KDH221) 1KD-FTV Diesel 05/2010 - 01/2019 3.0L
TOYOTA HILUX 3.0 D (KUN16) 1KD-FTV Diesel 08/2006 - 05/2015 3.0L
TOYOTA HILUX 3.0 D (KUN16_) 1KD-FTV Diesel 08/2006 - 06/2015 3.0L
TOYOTA HILUX 3.0 D (KUN16_, KUN36_, KUN16) 1KD-FTV Diesel 08/2005 - 08/2006 3.0L
TOYOTA HILUX 3.0 D 4WD (KUN26) 1KD-FTV Diesel 03/2005 - 08/2006 3.0L
TOYOTA HILUX 3.0 D 4WD (KUN26) 1KD-FTV Diesel 08/2006 - 09/2015 3.0L
TOYOTA HILUX 3.0 D 4WD (KUN26) 1KD-FTV Diesel 02/2005 - 08/2006 3.0L
TOYOTA REGIUS ACE 3.0 D-4D 1KD-FTV Diesel 08/2004 - 12/2018 3.0L
TOYOTA LAND CRUISER PRADO 3.0 D-4D (KDJ120, KDJ125, KDJ121) 1KD-FTV Diesel 11/2006 - 12/2010 3.0L
TOYOTA LAND CRUISER PRADO 3.0 D-4D (KDJ150_, KDJ150, KDJ155) 1KD-FTV Diesel 08/2009 - 06/2015 3.0L
TOYOTA REGIUS ACE 3.0 D-4D 4WD 1KD-FTV Diesel 08/2004 - 12/2018 3.0L
TOYOTA REGIUS ACE 3.0 D-4D 4WD (KDH225) 1KD-FTV Diesel 08/2004 3.0L
TOYOTA HILUX 3.0 D-4D 4WD (KUN26) 1KD-FTV Diesel 08/2006 - 09/2015 3.0L
DAIHATSU Delta V138 1KD-FTV 01/2004 - 12/2006
