Diesel Parts Australia

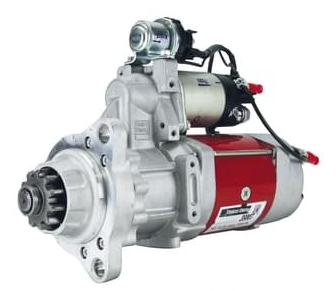

Starter Delco 39MT 24V 9.0KW 12T CW 46mm Suits Cummins ISB ISC Volvo D12 (8201056)
Starter Delco 39MT 24V 9.0KW 12T CW 46mm Suits Cummins ISB ISC Volvo D12 (8201056)
Regular price
$860.00
Regular price
Sale price
$860.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
Description:
The Delco Remy 39MT Heavy Duty Starter is a gear reduction starter ideal for heavy duty truck and off highway applications. The drive has an electrical soft start that rotates the pinion for proper ring gear engagement before cranking, minimizing tooth abutment related damage. The sealed solid link solenoid eliminates contact welding in low system voltage situations, providing enhanced reliability. Sealed noseless configuration minimizes debris accumulation and contamination reducing maintenance expense.
Specifications:
| Dimensions | 48cm x 30cm x 19cm |
|---|---|
| Specification1 | Clutch: Yes |
| Series | 39MT |
| Specification2 | Insulated Return: Yes |
| Wattage | 9.0kW |
| Voltage | 24V |
| Mounting Hole Centre to Centre Y | 126mm |
| Brand | DELCO REMY |
| Common Application | Cummins ISB,ISC,Volvo D12 |
| Pinion at Rest | 48mm |
| Weight | 16kg |
| Mounting Hole Centre to Centre Z | 126mm |
| Length | 413mm |
| Flange Diameter | 92mm |
| Mounting Hole Diameter | 17mm |
| Direction | CW |
| Teeth | 12T |
| Pinion Diameter | 46mm |
| Mounting Hole Centre to Centre X | 126mm |
