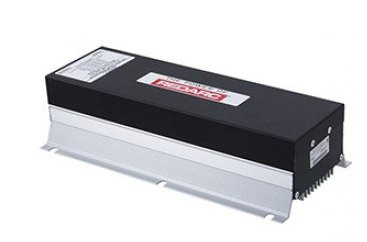

Voltage Reducer 24V-12V DC 5 Circuits 2x360W & 3x180W RMS Trailer Lighting Reducer
Voltage Reducer 24V-12V DC 5 Circuits 2x360W & 3x180W RMS Trailer Lighting Reducer
Regular price
$1,400.00
Regular price
Sale price
$1,400.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
Brand: Redarc Electronics
Voltage Reducer 24V-12V DC 5 Circuits 2x360W & 3x180W RMS Trailer Lighting Reducer Voltage Reducer 24V-12V DC 5 Circuits 2x360W & 3x180W RMS Trailer Lighting Reducer
| Specification10 | Input Fuse Rating: 80A |
|---|---|
| Specification11 | Input to 12V Output Delay (min): 15ms |
| Specification12 | Output Current Rating (Cont.): 31A |
| Specification9 | Humidity: 10% to 90% RH |
| Specification7 | Green: (Right Indicator - 180W) |
| Specification4 | Channel Output Voltage (RMS): 45-55% of input volt |
| Specification5 | Cover: 0.75mm Base Metal thickness |
| Specification6 | End Plates: 0.55 BMT, Black Marviplate/Versiclad |
| Specification13 | Overtemperatutre Protectopm: 95 Degrees |
| Specification8 | Heatsink: Extruded Aluminium |
| Specification14 | Powers: Incandescent & LED Trailer Lamps |
| Operating Temp | -20 to 50 Degrees C |
| Output Voltage | 12VRMS |
| Specification19 | Yellow: (Left Indicator - 180W) |
| Specification18 | Weather Protection: Potted in Silicone Elastomer |
| Specification15 | Red: (Stop - 360W) |
| Specification16 | Standby Input Current: 70mA (typ) |
| Specification17 | Warnings: Do NOT high pressure or submerge |
| Specification3 | Certification: EMC, AS/NZS, CISPR14.1:2003 |
| Length | 295mm |
| Specification2 | Brown: (Tail - 360W) |
| Brand | REDARC ELECTRONICS |
| Features | 2 x 360W & 3 x 180W Channels |
| Wiring | 5 |
| Weight | 2.3kg |
| Input Voltage | 18-32VDC |
| Height | 75mm |
| Specification1 | Black: (Reverse - 180W) |
| Dimensions | 295L x 135W x 75H |
| Width | 120mm |
